Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: SC
  • Model Number: SC-W250
  • Specification: Mini
  • Application: Industrial, on-grid solar power system
  • Output Voltage (V): DC 100-500V
  • Load Power (W): 260W
  • Solar Power (W): 180-350W
  • Work Time (h): 24 hours per day
  • Color: silvery white
  • Size: 191*176*38 mm
  • Net weight: 0.83kg
  • Gross weight: 1.27kg
  • Patent: patent appearance design
  • Certification: SAA , TUV ,ETL ,CE , CEC
  • Installation: back of solar panel
  • Waterproof: IP65
  • Recommend solar panel: 180-350 watt

Packaging & Delivery

Packaging Details: net weight 0.83kg/ gross weight 1.27kg
size(LxWxH) 194x176x38mm
Delivery Detail: 3-45 days after receving deposit

Specifications

Up to 25% more energy harvest
15years warranty
No single-point failure
Real-time monitoring
Simple and easy to install

 SUNCON 250watt grid on micro inverter



Advanteges





------------------------------------------------------

Three main parts:

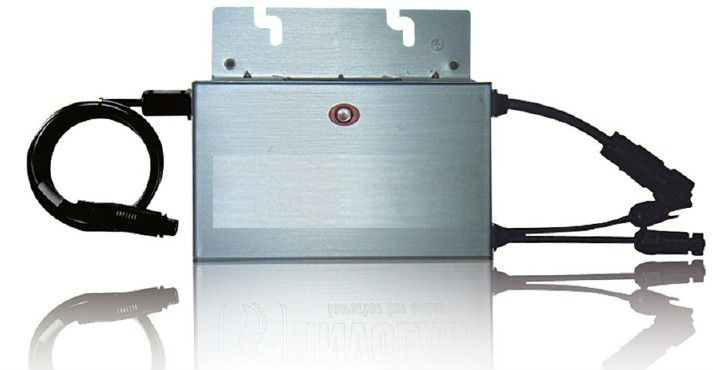

(1)250w micro-inverter body







Features:



The SUNCON MAC250 Micrinverter offers the latest technology in power inverters,which enables improved solar energu harvest, increased reliability, samplified installation, reducd installation csts and smart online power management system.





Ench SUNCON Microinverter is individually connected to one PV module. In the event of single panel failure the remaining microivrers continue to produce power normally.





By performing Maximum Power Point Tracking (MTTP) at the module level, SUNCON Microinverter minimises the effects of shading, debris, snow, panel orientation differences and mismatches or PV module aging, thus improving the system's energy harvest and custmer income by up to 25% over te system's lifetime.



Parameter



(2)Communication and power interface and Web monitor system.









  • Communications Interface with SEDAS web
  • Active anti-islanding
  • Over/under voltage protection
  • Over/under frequency protection
  • Over crrent protection
  • Short circuit protection
  • Anti-lightning protection
  • Harmonics suppression

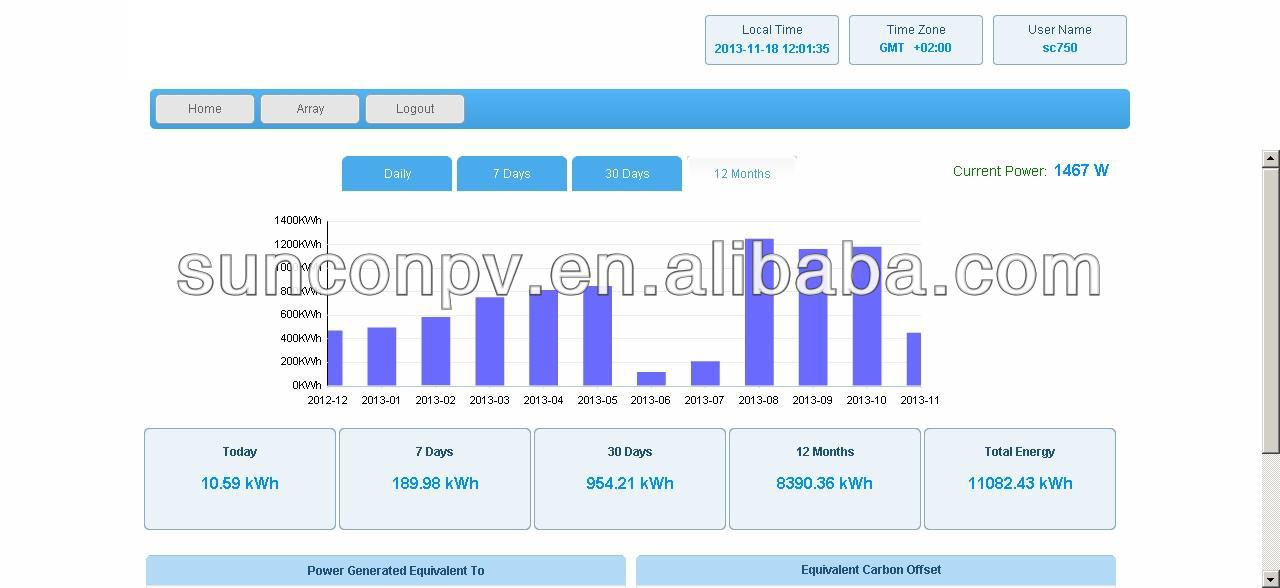

  • Web-based online monitoring per-module
  • Expandable for large systems

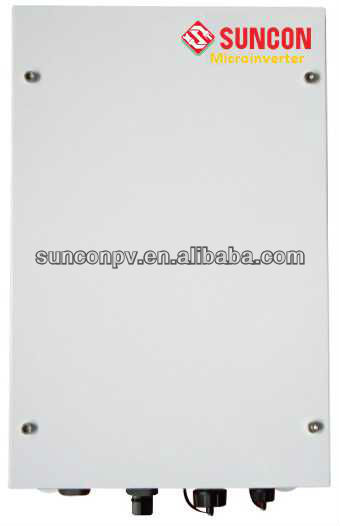

SUNCON's new product "eGate" acts as the power interface (PI) to the utility grid ad communications interface with the internet. It is a device installed at the coupling point to the utility grid to provide safety functions such as over/under voltage, over/under frequency, and especially active anti-islanding detection as well as lightning protection and line impedance stabilizing network (LISN). The real-time performance information of energy harvest for all SUNCON micro-inveter systems can be collected by eGate and transmitted to SUNCON Solar Energy Data Acquisition System,SEDAS, for global real-time monitoring.

------------------------------------------------------------------------------------------

Certificates



------------------------------------------------------

 Application for 1 MW solar system project  in Shanghai China







--------------------------------------------------------------Shipment :



  • EMS, UPS, DHL, FedEx and TNT express shipping usually take 3-5 working days dependent on the country delivered to;
  • We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
  • In order to ensure you receive your order with tax free upon import, we will declare it as a "Gift" or "Sample" with a lower value but it does not reflect the total price you paid or the market value of the goods and may not workable in some countries with different tariff rules;



------------------------------------------------

Our superiority:

Quality assurance:TUV certificate;

Low price compared with other Chinese trader,manufacturer;

Flexible MOQ+OEM+ODM;

Most prompt delivery time;

Most patient,attentive service from begining to the end;

Powerful membership:Amphenol,Molex,TE,Cabur,COYO and so on,all OEM their products in our facture

----------------------------------------------------



Remarks:

  • Accepts OEM. We also can design the cable according to your instructions, the color, specifications, length of our cables and connectors can be customized by the customers;
  • We can provide the cables as well as connectors  linked with the cable;
  • We adpot select raw-materials, our products are in high quality, competitive prices, prompt delivery;

 ---------------------------------------------------

Quality control

  • 25-year power output transferable warranty ;
  • High quality standards with optical, mechanical and electrical component testing during and post-production
  • ISO 9001:2008 (Quality Management System) certified factories manufacturing world class products
  • IEC61215, IEC61730, conformity to CE

----------------------------------------------------------Factory pictures
