Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: suncon
  • Model Number: SC-B4E+B4F
  • Type: TUV-MC4 T-branch solar connector
  • Insulation material: PPO
  • Contact material: Copper,tin plated
  • Rated current: 30A
  • Rated voltage: 1000V(TUV),600V(UL)
  • Test voltage: 8KV(TUV50HZ,1min.)
  • Degree of protection: IP67
  • Ambient tempetature range: -40℃~+90℃
  • Flame class: UL94-V0
  • Safety class: II
  • Pin dimention: 4.0mm

Packaging & Delivery

Packaging Details 1.156pairs/carton;
2.Piece weight:0.17kg/pair;N.W.:26.5KG/carton;G.W.:27.5KG/carton
3.Carton measure:49.5*35.5*37cm
Delivery Time within 1-2 work days
SUNCON Waterproof solar pv mc4 5-1 joint branch connector ip68 TUV

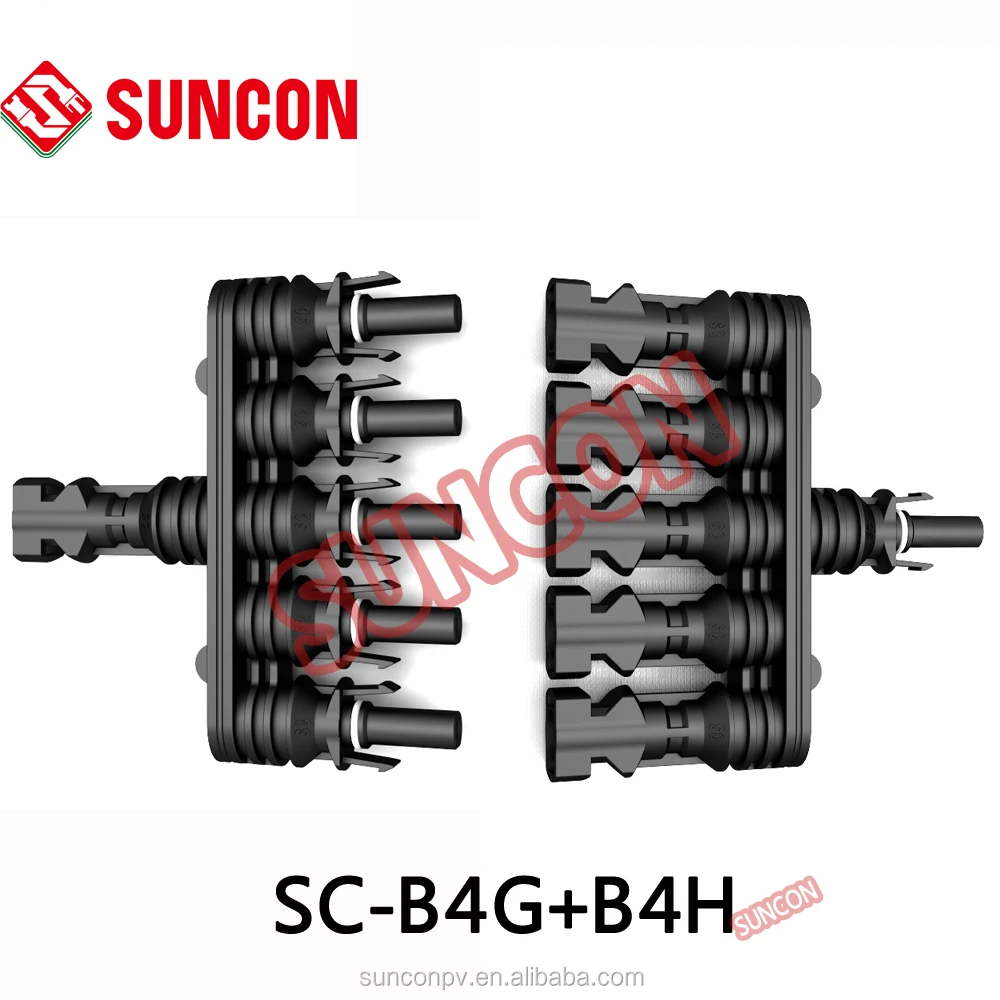

1.Pictures:

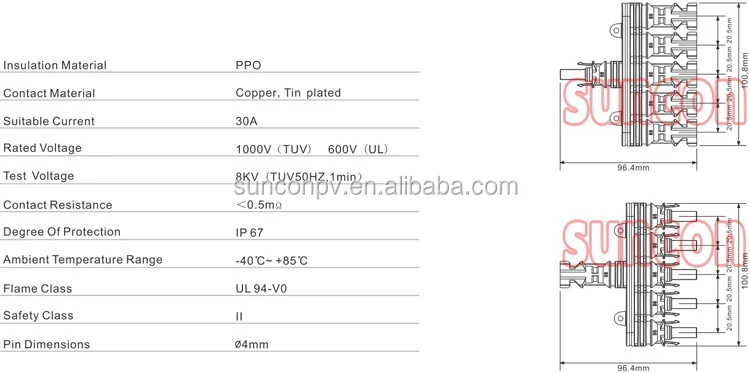

2.Specification:






3.Application on PV module:







4.Related products for waterproof SUNCON MC4 T branch solar connector:

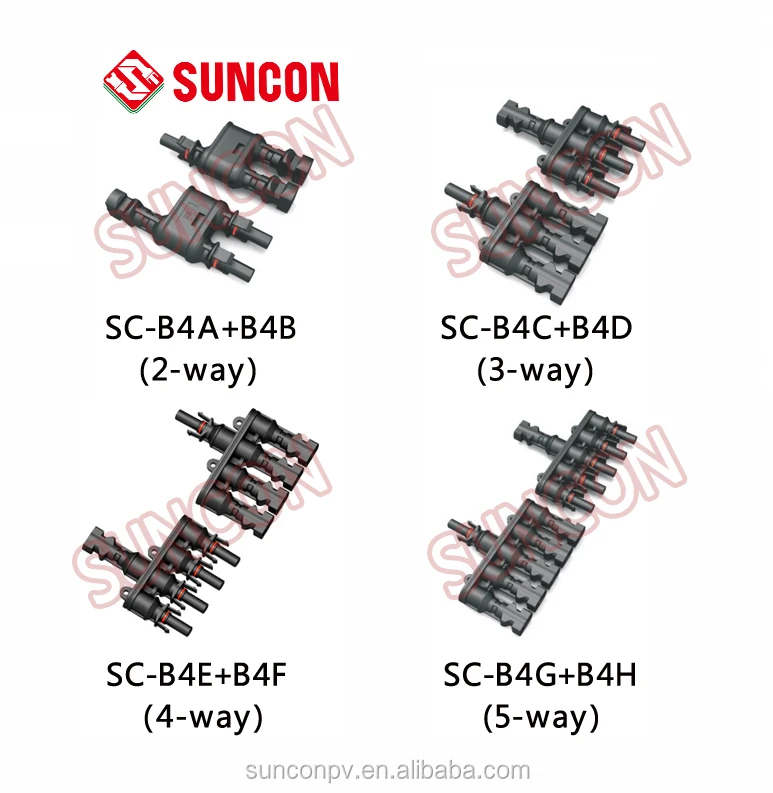

SUNCON have 2-way,3-way,4-way and 5-way MC4 T branch solar connector,respectively SC-B4A+B4B,SC-B4C+B4D,SC-B4G+B4H,SC-B4E+B4F,which are all 100% compatable with MC4 connectors.Also SUNCON have Y2B,Y3B and Y4B MC4 Y branch cable leads.Meanwhile,T-type SC-T3,X-type SC-X4.All BRANCH CONNECTOR augmented productes can be customized,including cable length,cable size,cable types and so on.





5.Packaging:

26pairs/box,6boxes/carton  totally 156pairs/carton
Box measure:34*24*11cm  Carton Size: 49.5*35.5*37cm
Piece weight:0.17kg/pairN.W.:26.5KG/carton;G.W.:27.5KG/carton






6.Freight ways:
  • EMS, UPS, DHL, FedEx and TNT express shipping usually take 3-5 working days dependent on the country delivered to;
  • Once shipping,we will give tracking NO.within 2 days and keep you posted at cargos transportation progress at any time;
  • By sea,by air,FOBshenzhen,FOBguangzhou and so on;
  • SUNCON packing-carton is strong enough for long-distance transport;

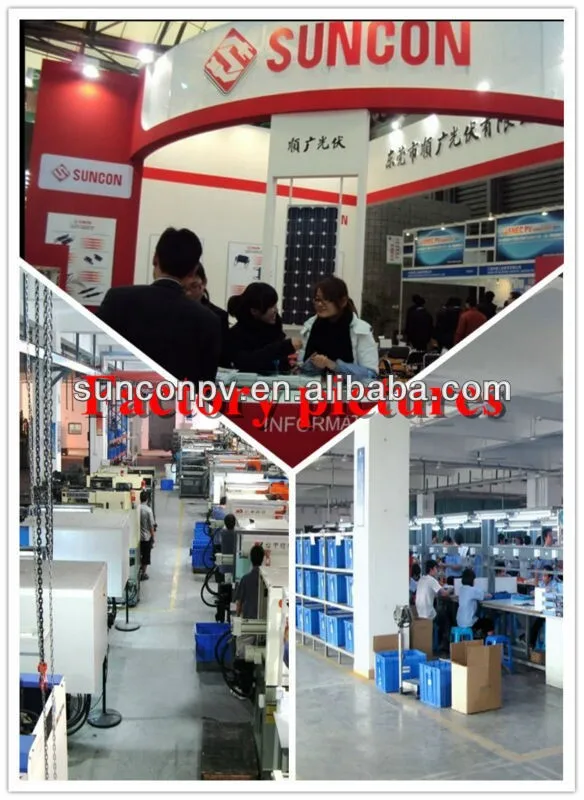

7.Company Information:
SUNCON PV TECHNOLOGY LTD., in Dongguan city, Guangdong province of China, based on molds’ R&D and product design in 2005 and kept a foothold in competitive solar market. Later in 2006 SUNON entered new energy’s App marketplace of a professional manufacturer in providing PV system connection modules, including solar connectors, PV junction boxes, PV cable and PV Modules which are widely used in PV power station, on-grid & off-grid, roofing system, family power supply system and so on. With this, SUNCON has become a professional supplier for offering integrated solution from product R&D, produce, market to apply completely.

So far a series of products have been successfully certified with CE, TUV, UL, ROSH and so on from many countries and regions by authorized organization, exported to Europe, America and Australia and other countries around the world. We have established a good strategic partnership with world customers with professional and perfect marketing service.
